IMETAL IM-CLIP

Architectural Specification

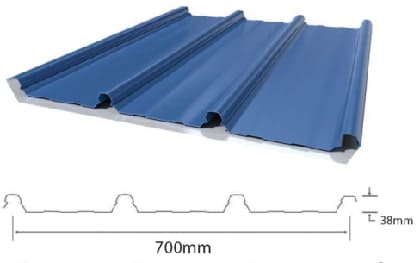

The roofing/walling shall be 0.55mm TCT in IMETAL IM-CLIP decking in continuous lengths with trapezoidal ribs 38mm high. Sheeting material shall be protected steel sheet to AZ150/AZ200 aluminium/zinc alloy coating with infrared-baked paint film of selected colour from COLOURCOIL® range.

Compatibility

All building products need to be checked for compatibility with adjacent materials. These checks need to be for both direct contact between materials, and where water runs from one material to another. The following guidelines generally avoid material incompatibility:

For zinc-aluminium alloy coated steel, avoid copper, lead, green or treated timber, stainless steel and mortar or concrete.

Fastener All fastening screws must conform to minimum AS3566 - Class 3. For connecting to purlins or top hats use:

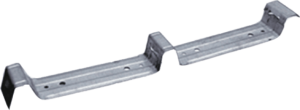

Clip for I-CLIP™

For I-CLIP™ Roofing Fasteners for Clip

For Steel (0.75BMT or greater)

Side Laps and Accessories

Profile

IMETAL CLIP™

Thickness

0.55MM TCT 0.50MM TCT

Paint System
PVF2 SERIES™ KRISTALMATT SERIES™ ELITE SERIES™ PUREMATT SERIES™
Coating System

AZ 200 AZ 150

Insulation

Acoustic

The unique IMETAL roofing compresses blanket during installation making fixing easy. Blanket up to 50mm in thickness can be readily used and is known to provide at least STC25. For better and specific acoustic requirement, kindly contact our personnel.

Thermal

For tropical weather, IMETAL recommended double sided AI foils or bubble foils with of min 9 micron. A buildup of metal roof with AI foils, coupled with sufficient air gaps is proven to bring down the heat to comfortable level. For better and specific thermal requirement, kindly contact our personnel.

Cutting

IMETAL decking can be easily cut, where required, using a power saw with a steel cutting blade or a power nibbler and, for localized cutting, tin snips. Avoid the use of abrasive discs as there can cause burred edges and coating damage. Cutting using abrasive disc also results in unsightly edges. As good practice, clean the roof everyday after finishing work for the day.

Walking

As with all roofing products, we recommend extra caution be taken when walking on the roof. When walking on IMETAL roofing always wear flat rubber soled shoes and place feet only in the pans, taking care to avoid the last pan or two near edges of the metal roof area.
